Model No: 1x2 13/15

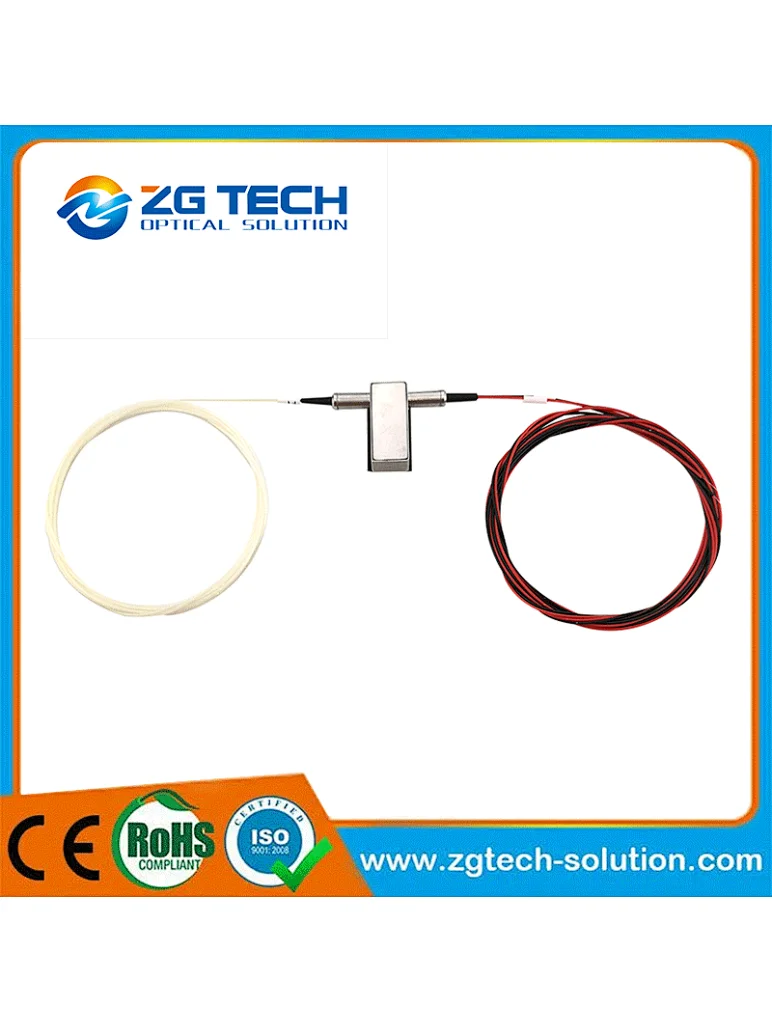

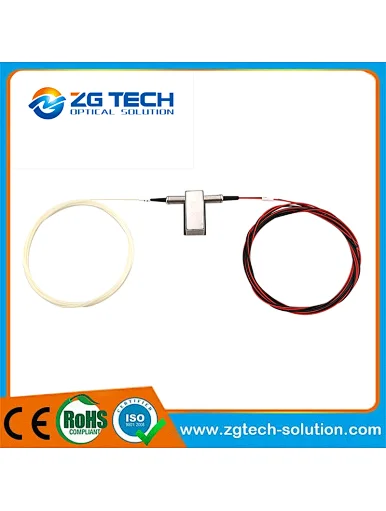

1x2 Mechanical Optical Switch
Switch between two optical paths with ease using our 1x2 mechanical optical switch. Improve your optical communication with reliable and cost-effective switching.
Quantity :
0.00
Subscribe to our Newsletter
Optical Switch Product Description：
Optical Switch is a kind of optical path conversion device. In fiber optic transmission systems, Optical Switch are used for conversion of multiple monitors, Lans, multi-light sources, detectors and protection Ethernet. In optical fiber testing system, used for optical fiber, optical fiber equipment testing and network testing, optical fiber sensing multi-point monitoring system.
Optical Switch (OS) is a device with one or more optional transmission Windows, which can be used for the conversion or logical operation of optical signals in the optical transmission line or integrated optical path. The basic form of Optical Switch is 2X2, that is, there are two optical fibers in the inlet end and two optical fibers in the outlet end, which can complete two connection states, parallel connection and cross connection, as shown in Figure 2. The larger space division optical switching unit can be composed of the basic 2X2 optical switch and the corresponding 1X2 optical switch cascaded and combined.
Optical Switch (OS) is a device with one or more optional transmission Windows, which can be used for the conversion or logical operation of optical signals in the optical transmission line or integrated optical path. The basic form of Optical Switch is 2X2, that is, there are two optical fibers in the inlet end and two optical fibers in the outlet end, which can complete two connection states, parallel connection and cross connection, as shown in Figure 2. The larger space division optical switching unit can be composed of the basic 2X2 optical switch and the corresponding 1X2 optical switch cascaded and combined.
1x2 Opto-Mechanical Optical Switches
ZG 1x2 Mechanical Optical Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber.
ZG 1x2 Mechanical Optical Switch support all wavelength at 1260nm~1650nm, it offers ultra-high reliability, low insertion loss, fast switching speed as well as bi-directional performance. The optical switches are widely used for Optical Network, Protection, Transmitter and Receiver Protection,Network Test System and Instrumentations.
Technical Paremeter
Note: 1. Customization is available.
2. Specified without connector, and add an additional 0.2dB loss per connector.
Pins
Electric
Ordering Information
