Model No: 13/15nm Not locked/locked
mechanical optical switch
Mechanical optical switches work by physically moving optical fibers through a mechanical device to redirect optical signals. By moving a prism or directional coupler, the input light is directed to the desired output port. There are three main types of mechanical optical switches: one is using prism switching optical path technology, the other is using mirror switching technology, and the third is switching optical path by moving optical fiber.
Quantity :
23.00
Subscribe to our Newsletter
Mechanical optical switch work by physically moving optical fibers through a mechanical device to redirect optical signals. By moving a prism or directional coupler, the input light is directed to the desired output port. There are three main types of mechanical optical switches: one is using prism switching optical path technology, the other is using mirror switching technology, and the third is switching optical path by moving optical fiber.
mechanical optical switch has one or more selectable transmission Windows, mechanical optical switch can be divided into 2×2, 1×N, M×N port configurations. mechanical optical switch has a wide range of applications in optical fiber communication system, its implementation technology is various, including: mechanical optical switch, thermooptic switch, acoustooptic switch, electro-optical switch, magneto-optical switch, liquid crystal optical switch and MEMS optical switch, etc. mechanical optical switch and MEMS optical switch are two kinds of optical switches widely used at present.

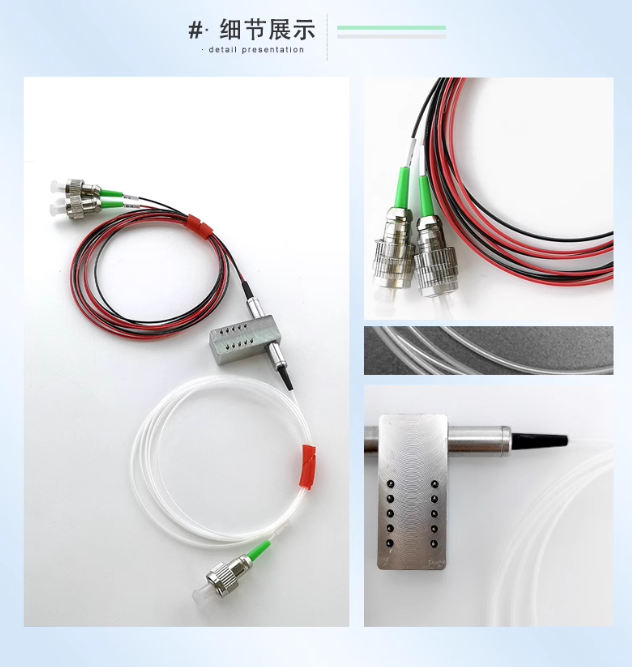

Mechanical Optical Switch Details Presentation:
mechanical optical switch Products Information:
Parameters: | ZG-FSW-1*2 | ||
Wavelength Rnage: | nm | 670-980 | 1260-1650 |
Operating Wavelength: | nm | 670/785/850/980 | 1310/1490/1550/1625/1650 |
Insertion Loss: | dB | Typ:0.8 Max:1.2 | Typ:0.5 Max:0.8 |
Return Loss: | dB | MM=30 SM=50 | |
Cross Talk: | dB | MM=35 SM=55 | |
PDL: | dB | =0.05 | |
WDL: | dB | =0.25 | |
TDL: | dB | =0.25 | |
Repeat Ability: | dB | =?0.02 | |
Power Supply： | V | 3.0 OR 5.0 | |
Life Time: | / | =10 | |
Switch Time: | ms | =8 | |
Transmission Power: | mW | =500 | |
Operating Temperature: | °C | -30~+70 | |
Storege Temperature: | °C | -40~+85 | |
Weight: | g | 14 | |

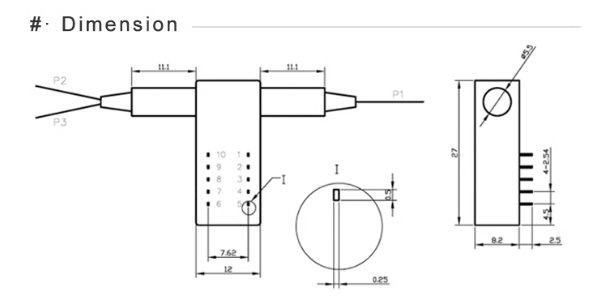

Dimersion: | mm | L27*W12.6*H82±0.2 | |
Pins
Type | Pin | Electric Drive | Status Sensor | ||||||
1x2 | Channel | 1 | 5 | 6 | 10 | 2-3 | 3-4 | 7-8 | 8-9 |
Latching | P1-P2 | - | .. | GND | V+ | Close | Open | Open | Close |
P1-P3 | v+ | GND | .. | .. | Open | Close | Close | Open | |
Non-Latching | P1-P2 | - | .. | .. | .. | Close | Open | Open | Close |
P1-P3 | V+ | .. | .. | GND | Open | Close | Close | Open | |
Optical Route
Status 1 | Status 2 |
 |  |
Electric
Speifications | Voltge | Current | Resitance |
5V latching | 4.5~5.5 | 36-44mA | 1250 |
5V Non-latching | 4.5~5.5 | 26-32mA | 1750 |
3V latching | 2.7~3.3 | 54-66mA | 500 |
3V Non-latching | 2.7~3.3 | 39-47mA | 700 |
mechanical optical switch Ordering Information
A | B | C | D | E | F | G | H |
Mode | Wavelength | Voltage Type | Control Model | Fiber Type | Fiber Diameter | Fiber Length | Connector |
S:SM M:MM | 85:850nm 13:1310nm 14:1490nm 15:1550nm 162:1625nm 165:1650nm 13/15:1310/1550nm X:Others | 3:3V 5:5V | L:Latching N:Non Latching | 5:50/125 6:62.5/125 9:9/125 X:Others | 25:250um 90:90um 20:2.0um 30:3.0um X:Others | 05:0.5m 10:1.0m 15:1.5m X:Others | oo:other FP:FC/PC FA:FC/APC SP:SC/PC SA:SC/APC STP:ST/PC STA:ST/APC LP:LC/PC LA:LC/APC X:Others |
