DWDM System: The Outstanding Engine of Optical Communication, Leading the Transformation of Information Transmission

In the current digital age, the efficient transmission of information is the key driving force for social development. The DWDM system plays a crucial role in the field of optical communication and is reshaping the architecture and efficiency of the global communication network.

I. The Principle of DWDM Technology: Opening the Door to Efficient Optical Communication Transmission

The ingenuity of DWDM technology lies in frequency division multiplexing in the optical domain. By precisely utilizing different wavelengths of light as independent information carriers, it enables the parallel transmission of multiple optical signals in the same optical fiber. Figuratively speaking, it is like assigning an exclusive "lane" (wavelength) to each "data vehicle" on a superhighway, greatly expanding the information transmission bandwidth of the optical fiber. This wavelength-based multiplexing technology allows an optical fiber to carry multiple high-speed data channels simultaneously, fully exploiting the transmission potential of the optical fiber and becoming the core foundation for modern optical communication to achieve large-capacity and long-distance transmission.

II. The Core Advantages of the DWDM System: Comprehensive and Outstanding Performance Display

(I) Amazing Transmission Performance

1. World Record for Ultra-Long Distance Transmission
   In terms of long-haul transmission capabilities, the DWDM system has continuously broken through limits. For example, some advanced DWDM systems have successfully achieved more than 4,000 kilometers of unrepeatered transmission. Taking a well-known manufacturer's system as an example, it has reached an ultra-long transmission distance of 4,200 kilometers in practical applications. This achievement is attributed to highly sophisticated optical amplification technology and advanced dispersion compensation algorithms. By reasonably arranging optical amplifiers along the transmission line and precisely compensating for the dispersion effect of optical signals during long-distance transmission, the high fidelity of optical signals is ensured after traveling thousands of miles, providing reliable technical support for intercontinental and transoceanic data transmission worldwide, and truly realizing seamless global information connection.
2.
   Industry-Leading Large Capacity Carrying
   In terms of capacity expansion, the DWDM system demonstrates strong capabilities. Currently, high-end DWDM systems on the market can support a dense wavelength division multiplexing configuration of up to 80G×160 waves, with a total transmission capacity reaching an astonishing 12.8 Tbps. Taking a large-scale Internet data center interconnection project as an example, after adopting an advanced DWDM system, it can meet the massive data interaction requirements among tens of thousands of servers simultaneously, enabling hundreds of millions of data transmission operations per second. It can easily handle high-speed and large-data-volume business scenarios such as 4K/8K video streaming, large-scale cloud computing tasks, and massive Internet of Things device data uploads, effectively promoting the vigorous development of the digital economy.

(II) Ultimate Flexibility and Reliability

1. Infinite Possibilities of Flexible Networking

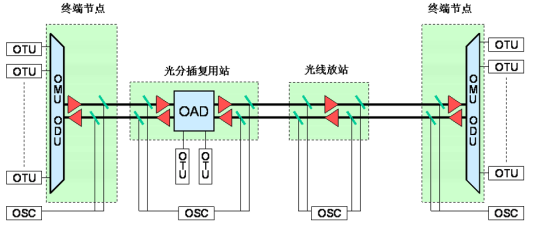

   The DWDM system supports a variety of networking architectures, among which the OTM - OADM architecture has significant advantages. The application of OADM (Optical Add-Drop Multiplexer) makes the construction of optical networks as flexible as building Lego blocks. In the construction of metropolitan area networks, star, ring, or hybrid network topologies can be quickly constructed according to the business density and development needs of different regions in the city. For example, in a metropolitan area network upgrade project in a first-tier city, by deploying the DWDM system combined with OADM technology, differential network coverage and efficient data distribution in different areas such as the central business district, high-tech development zone, and residential area were successfully realized. The connection efficiency between network nodes was increased by more than 30%, greatly improving the informatization level of the city and the network experience of residents.
2. Solid Network Protection

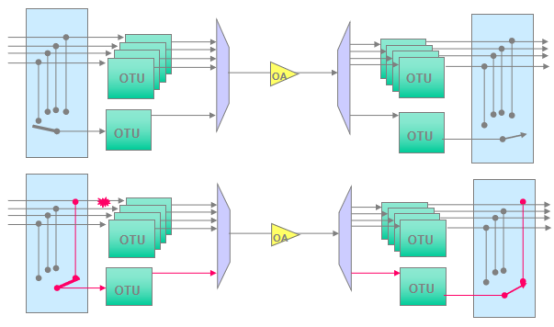

   To ensure the stable operation of the network, the DWDM system has carefully designed a comprehensive and multi-level protection scheme for different service subnets. Among them, the optical layer path protection based on OTU and the multiplex section protection based on optical lines can achieve a fast switchover of less than 30 ms in case of fiber line failures, equipment abnormalities, or external interference. Taking the backbone network of a certain telecom operator as an example, after adopting the protection mechanism of the DWDM system, the cumulative annual business interruption time due to network failures was reduced by more than 90%. It effectively guaranteed the continuity and stability of telecom services, greatly reduced the economic losses and user complaint rates caused by network failures, and provided users with reliable communication services at all times.

(III) Cutting-Edge Equipment Technology

1. Precise Operation of Efficient Multiplexing/Demultiplexing

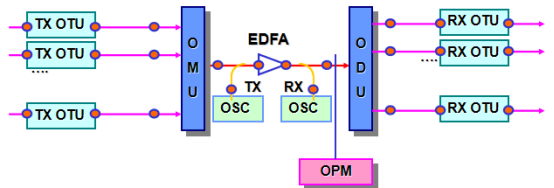

   In the multiplexing/demultiplexing unit, advanced AWG (Arrayed Waveguide Grating) devices are used to achieve efficient and precise optical signal multiplexing and demultiplexing operations. A single disk can provide multiplexing/demultiplexing capabilities of 64/80 waves or more, with an insertion loss of less than 0.5 dB and an isolation of more than 40 dB. This excellent performance not only significantly reduces the gain requirements of optical amplification equipment and the introduction of noise but also greatly improves the performance margin and stability of the entire system. For example, in a high-speed data transmission experiment, when the DWDM system using this technology transmitted a 100 Gbps high-speed optical signal, the bit error rate of the signal remained at an extremely low level, ensuring the optimal quality and efficiency of optical signals during multiplexing and demultiplexing and laying a solid foundation for the efficient operation of the system.
2. Outstanding Innovation of Intelligent Optical Amplification
   The EDFA (Erbium-Doped Fiber Amplifier) unit has been deeply optimized and designed to provide various adaptation schemes for different line states, including OBA, OPA, and OLA. Through advanced gain flattening and gain locking technologies, the gain difference between each channel can be strictly controlled within 0.5 dB. Even when the channels are dynamically adjusted, other channels can be ensured to be unaffected and maintain a stable signal amplification effect. In addition, the intelligent application of VOA (Variable Optical Attenuator) realizes adaptive power adjustment, which can automatically or semi-automatically optimize the optical power according to the line attenuation change, keeping the network in the best working state. In a long-distance transmission project, after the optical signal was transmitted over 2,000 kilometers in the DWDM system using intelligent optical amplification technology, the power fluctuation of the optical signal was still less than 1 dB, providing continuous and stable energy support for the long-distance transmission of optical signals and ensuring the stability of the signal strength and quality during transmission.

(IV) Wide Service Access Capability

The DWDM system has strong service access compatibility and can seamlessly interface with various mainstream service interfaces, such as SDH, SONET, rich data service interfaces (including 100M FE, 1000M GE, ATM, etc.), multi-rate adaptive interfaces, and special service interfaces (such as digital video image service interfaces ESCON/FICON/FC, etc.). In a comprehensive communication network project, the DWDM system successfully integrated voice communication, Internet data, video surveillance, and cloud computing services, realizing the efficient collaborative transmission of different services. For example, in a dedicated communication network built for a large enterprise, through the unified access and transmission of the DWDM system, the enterprise's internal telephone conferences, online office, high-definition video surveillance, and data backup services could run smoothly simultaneously. It truly achieved one-stop service to meet diverse service requirements, creating a unified and efficient integrated service transmission platform for network operators and enterprise users and effectively promoting the integration and innovation of communication services.

III. The Application Achievements of the DWDM System: Promoting the Vigorous Development of the Global Communication Network

In the field of practical applications, the DWDM system has played a crucial role in many major domestic and international communication projects and has achieved remarkable results. In China, it is widely used in the backbone and metropolitan area networks of major operators and has deeply participated in the core projects of telecom, mobile, and Unicom operators. For example, in a key node network construction project of the "East Data West Computing" initiative, after adopting an advanced DWDM system, ultra-high-speed and large-capacity data transmission between the eastern data center and the western computing hub was realized, with the transmission rate increased by more than 5 times. It effectively supported the smooth implementation of the national strategic project and promoted the coordinated development of regional economies and informatization construction.

In the international market, the DWDM system also occupies an important position in the construction of the global communication network. Its products and technologies have been highly recognized and widely used in communication projects in many countries and regions in Europe, America, Asia-Pacific, etc. For example, in a transnational backbone network construction project in Europe, the DWDM system successfully realized high-speed data interconnection among multiple countries, with the network reliability reaching more than 99.999%. It provided a solid communication foundation for the digitalization process in Europe. Through participating in the construction of the global optical communication network, the DWDM system not only demonstrated its advanced technical strength but also promoted the exchange and cooperation of global communication technologies, driving the global communication network to continuously move forward in the direction of higher speed, larger capacity, and more stable and reliable, becoming the core technical support for global interconnection in the information age.

In conclusion, the DWDM system has become an outstanding engine in the field of optical communication due to its outstanding performance in technological innovation, performance optimization, function expansion, and application practice. With the continuous integration and rapid development of emerging technologies such as 5G, cloud computing, big data, and the Internet of Things, the DWDM system will continue to play its key role, continuously upgrade and improve, and open up broader prospects for the future development of the global communication network, helping humanity to achieve closer connections and unlimited possibilities in the digital age.
