As one of the leading 100GHz 8 Channel WDM in networking and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price 100GHz 8 Channel WDM in networking made in China. 8 Channel DWDM,100GHz 8 Channel WDM in networking.
100GHz 8 Channel WDM in networking, WDM in networking
Our 8 Channel WDM in networking utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging to achieve optical add and drop at the ITU wavelengths. It provides ITU channel center wavelength, low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path . It can be used for wavelength add/drop in telecommunication network system.

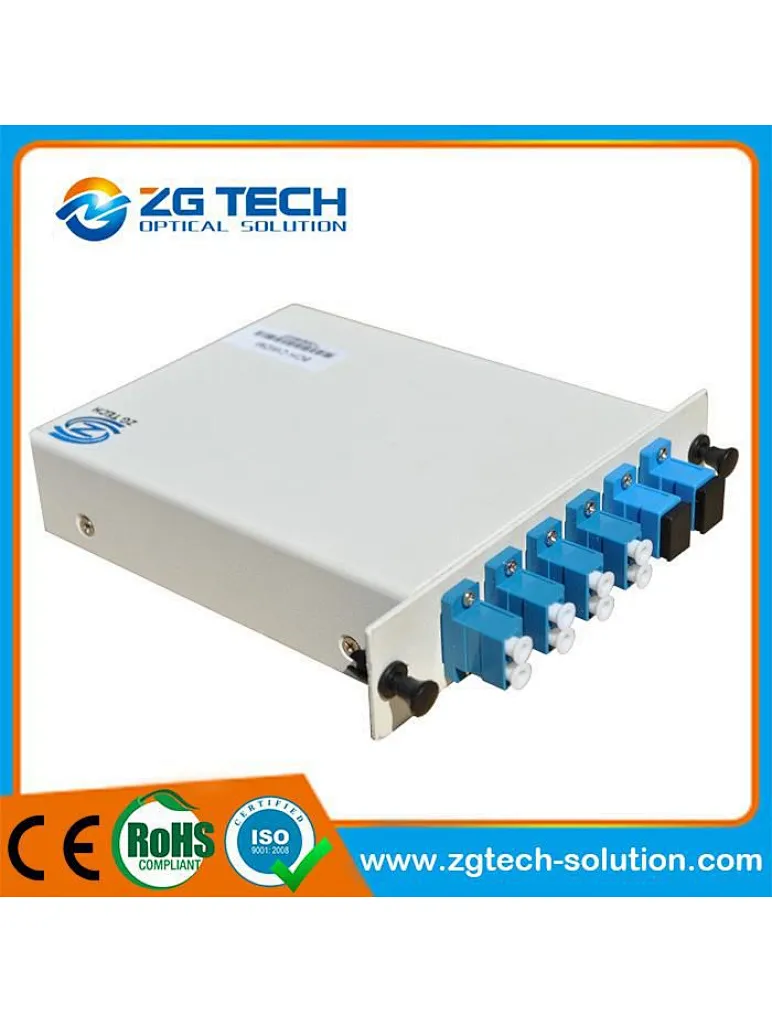

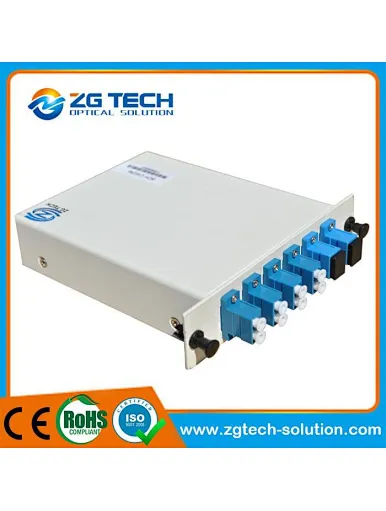

Our 8 Channel DWDM module offer a few different kinds of packages. If you need customized DWDM module or system, we can offer you the suitable ones. (ABS box packed DWDM or DWDM single components are also offered.)
100GHz 8 Channel WDM in networking, WDM in networking
Features
Low Insertion Loss
Wide pass band
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path
Access Network
100GHz 8 Channel WDM in networking, WDM in networking
Applications
Line Monitoring
WDM Network
Telecommunication
Cellular Application
Fiber Optical amplifier
Acess Network
100GHz 8 Channel WDM in networking
Performance Specifications
100GHz 8 WDM in networking
Parameter | 4 Channel | 8 Channel | 16 Channel | ||||||
Mux | Demux | Mux | Demux | Mux | Demux | ||||
Channel Wavelength (nm) | ITU 100GHz Grid | ||||||||
Center wavelength Accuracy (nm) | ±0.1 | ||||||||
Channel Spacing (nm) | 100 | ||||||||
Channel Passband (@-0.5dB bandwidth (nm) | >0.25 | ||||||||
Insertion Loss (dB) | ≤1.8 | ≤3.7 | ≤5. 5 | ||||||
Channel Uniformity (dB) | ≤0.6 | ≤1.0 | ≤1.5 | ||||||
Channel Ripple (dB) | 0.3 | ||||||||
Isolation (dB) | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 | ||
Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |||
Inertion Loss Temperature Sensitivity (dB/℃) | <0.005 | ||||||||
Wavelength Temperature Shifting (nm/℃) | <0.002 | ||||||||
Polarization Dependent Loss (dB) | <0.1 | <0.1 | <0.15 | ||||||
Polarization Mode Dispersion | <0.1 | ||||||||
Directivity (dB) | >50 | ||||||||
Return Loss (dB) | >45 | ||||||||
Maximum Power Handling (mW) | 300 | ||||||||
Opterating Temperature (℃) | -5~+75 | ||||||||
Storage Temperature (℃) | -40~85 | ||||||||
Package dimension (mm) | L100 x W80 x H10 | L142 x W102 x H14.5 | |||||||
Specifications may change without notice.
Above specification are for device without connector.

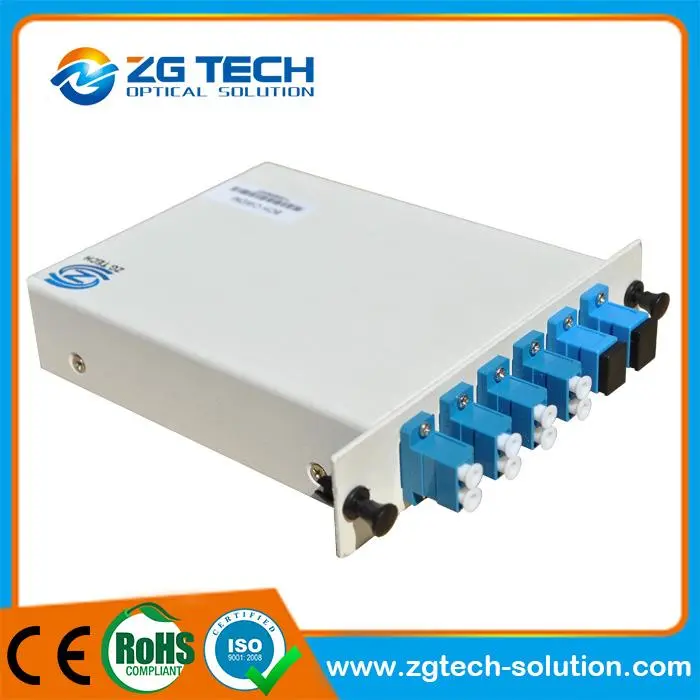

100GHz 8 Channel Dense Wavelength Division Multiplexer
Ordering Information
100GHz 8 Channel WDM in networking
DWDM | X | XX | X | XX | X | X | XX |
Channel Spacing | Number of Channels | Configuration | 1st Channel | Fiber Type | Fiber Length | In/Out Connector | |
1=100GHz | 04=4 Channel | M=Mux | 21=Ch21 | 1=Bare fiber | 1=1m | 0=None |
