Low insertion loss | Channel add / drop DWDM network Wavelength routing Fiber optical amplifier CATV Fiber Optic System |

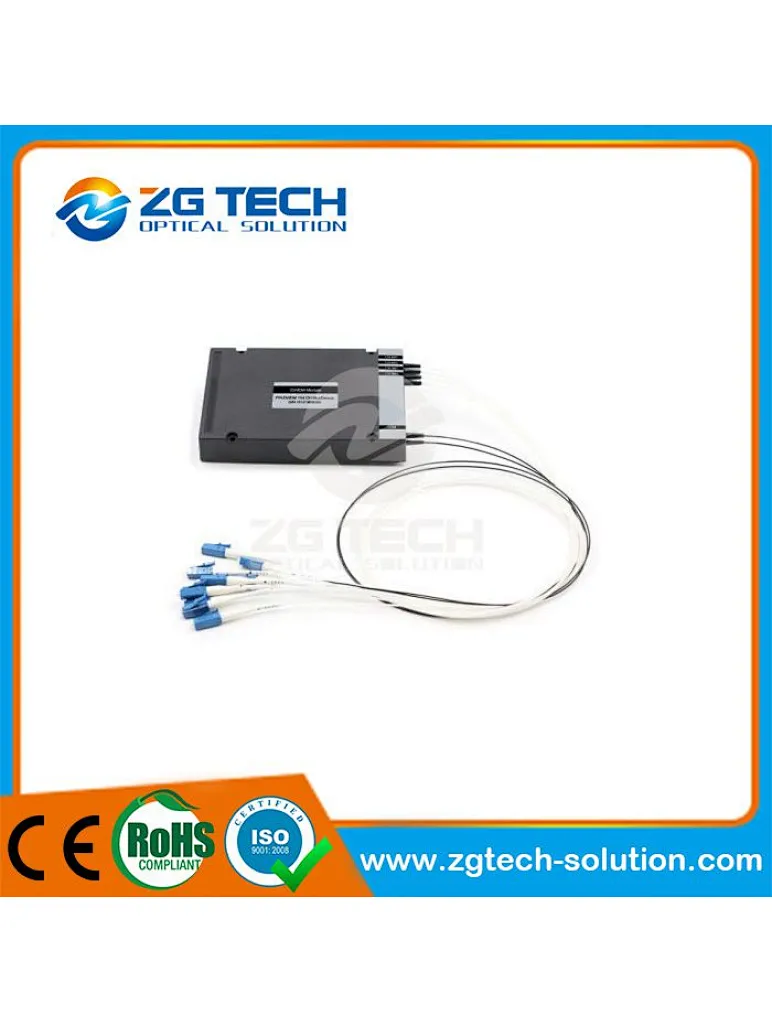

100GHz DWDM 4 Channel DWDM MUX DEMUX
Performance Specifications
Parameter | MUX | DEMUX | |
Operating Wavelength (nm) | ITU 100 GHz Grid | ||
Center Wavelength Accuracy (nm) | ± 0.1 | ||
Channel Spacing (GHz) | 100 (0.8nm) | ||
Channel Pass band (@-0.5dB bandwidth) Min.(nm) | 0.22 | ||
Insertion Loss (dB) | < 2.5 | ||
Channel Uniformity (dB) | < 1.5 | ||
Channel Ripple (dB) | < 0.3 | ||
Isolation (dB) | Adjacent | N/A | >30 |
Non-adjacent | N/A | >40 | |
Insertion Loss Temperature Sensitivity (dB/°C ) | <0.005 | ||
Wavelength Temperature Shifting (nm/ °C ) | <0.002 | ||
Polarization Dependent Loss (dB) | <0.2 | ||
Polarization Mode Dispersion (p s) | <0.2 | ||
Directivity (dB) | >50 | ||
Return Loss (dB) | >45 | ||
Maximum Power Handling (mw) | 300 | ||
Operating Temperature (°C) | -20 ~+85 | ||
Storage Temperature (°C) | -40 ~+85 | ||
Package Dimension (mm) | L110 x W95 x H7.5 | ||
Specifications may change without notice, without connector date
100GHz DWDM 4 Channel Passive WDM
Dimensions Drawing (mm):
Ordering Information
100GHz DWDM 4 Channel Passive WDM
DWDM | Channel Spacing | Channel | Configuration | 1st Channel | Fiber Type | Fiber Length | Connector |
| 1=100GHz | 4=4 Channel | M=Mux | 21=1560.61nm | 1=Bare Fiber | 1=1 Meter | 0=None |
100GHz DWDM 4 Channel Passive WDM
