As one of the leading 8+1 Channel CWDM and DWDM manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price 8+1 Channel CWDM and DWDM made in China. Welcome to send us inquiry of 8+1 Channel CWDM and DWDM

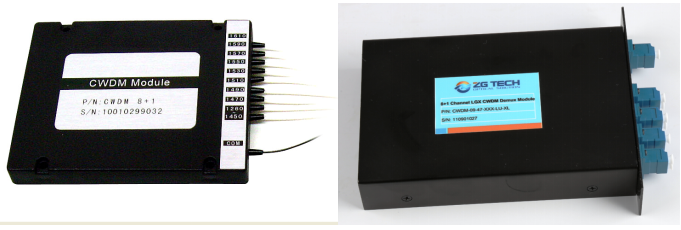

8+1 Channel CWDM and DWDM, CWDM and DWDM, CWDM and DWDM
Features | Applications |
Low insertion loss | Line monitoring |
CWDM and DWDM
Performance Specifications
Parameter | MUX | DEMUX | |
Operating Wavelength (nm) | 1260—1620 nm | ||
Upgrade channel (1310nm) | IL<=0.8 db , ISO >15db | ||
Center Wavelength Accuracy (nm) | ± 0.5 | ||
Channel Spacing (nm) | 20 | ||
Channel Passband (@-0.5dB bandwidth) (nm) | >13 | ||
Insertion Loss (dB) | << u="">2.7 | ||
Channel Uniformity (dB) | << u=""> 1.0 | ||
Channel Ripple (dB) | << u=""> 0.3 | ||
Isolation (dB) | Adjacent | N/A | >30 |
Non-adjacent | N/A | >40 | |
Insertion Loss Temperature Sensitivity (dB/°C ) | << u=""> 0.003 | ||
Wavelength Temperature Shifting (nm/ °C ) | << u=""> 0.002 | ||
Polarization Dependent Loss (dB) | << u=""> 0.10 | ||
Polarization Mode Dispersion (ps) | << u=""> 0.1 | ||
Directivity (dB) | >50 | ||
Return Loss (dB) | >45 | ||
Power Handling (mW) | 500 | ||
Operating Temperature (°C) | -30 ~+85 | ||
Storage Temperature (°C) | -40 ~+85 | ||
Package Dimension (mm) | L110 x W95 x H7.5 | ||
Specifications may change without notice
Ordering Information
CWDM and DWDM
CWDM | Numberof channels | Configuration | 1st | Fiber Type | Fiber | Connector |
9=8+1 Channel | M=Mux | 41=1411nm 43=1431nm 55=1551nm 57=1571nm | 1=250um Bare Fiber | 1=1 Meter | 0=None |
