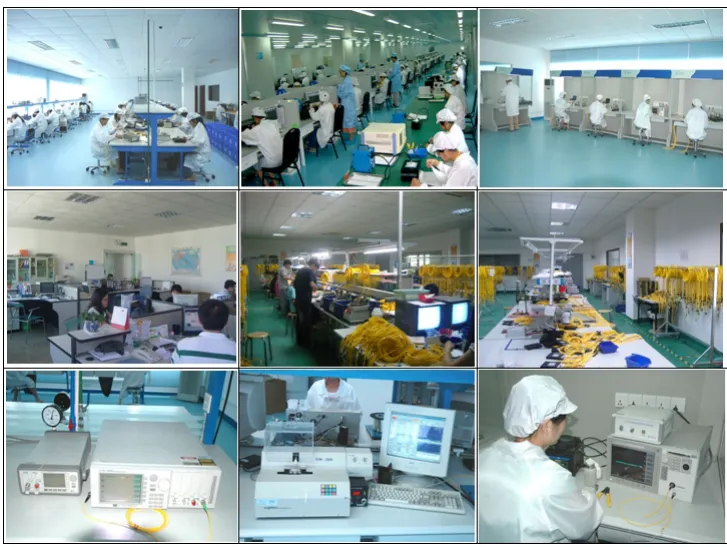

As one of the leading 1310nm/1490nm Or 1310/1550nm Single Mode WDM manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price 1310nm/1490nm Or 1310/1550nm Single Mode WDM made in China.

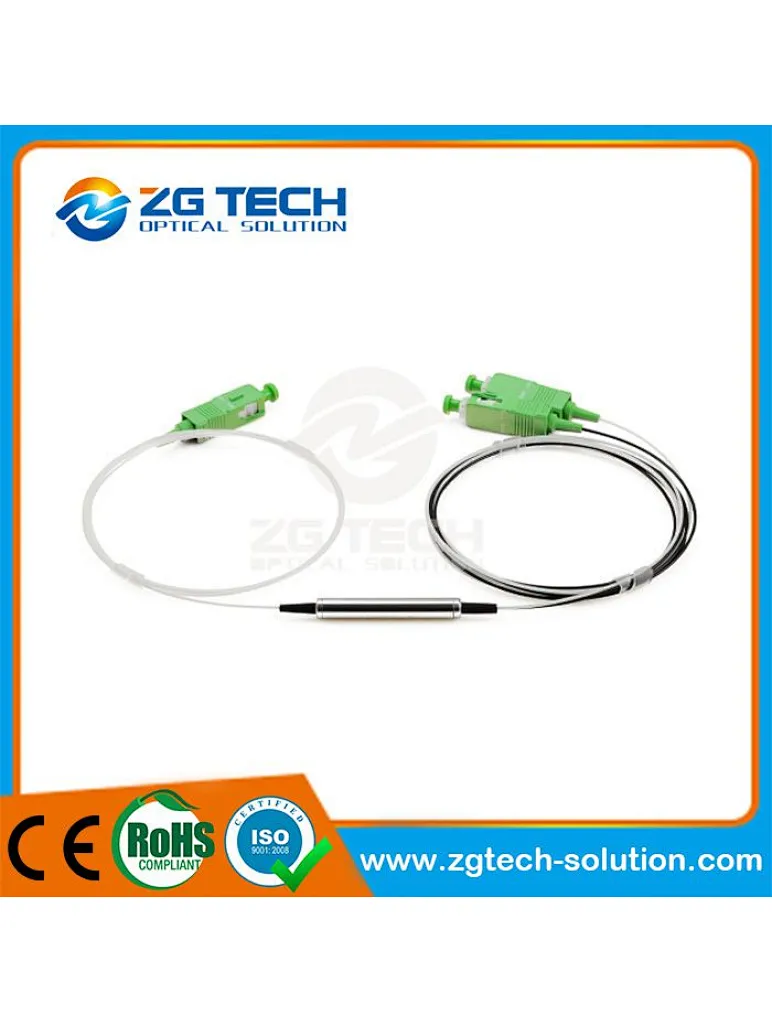

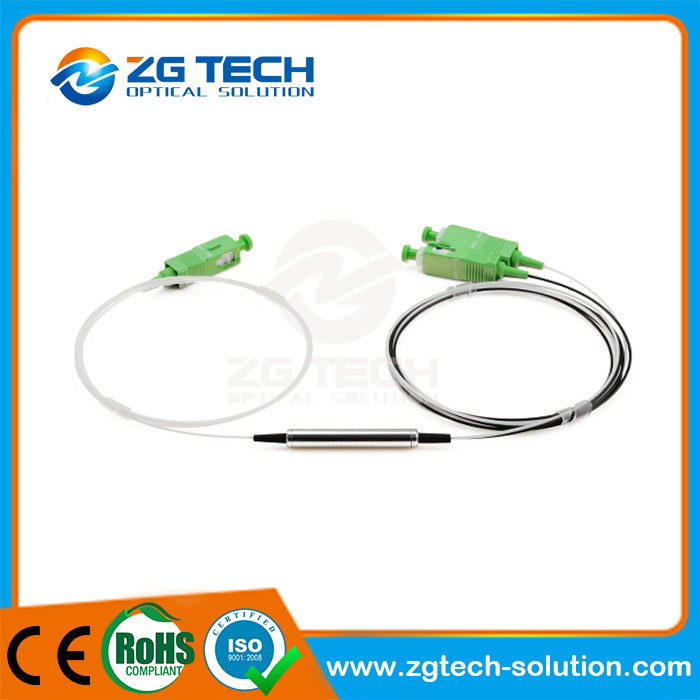

1310nm/1490nm Or 1310/1550nm Single Mode WDM
1310nm/1490nm Or 1310/1550nm Single Mode WDM devices based on thin-film filter technology are design to address the specific requirements of the FTTP market. Strong coating and passive device packaging capabilities feature these Wads with excellent optical performance, good reliability and ultra-compact size. There are two standard types (General Type, Broadband Type) to meet different customer demands. And any other customized design is also available upon requests. 1310nm/1490nm Or 1310/1550nm Single Mode WDM Dimensions:
Performance Specifications
Single Mode WDM
Parameter | Unit | value | ||||
G type | B type | |||||
Min | Max | Min | Max | |||
Operating Wavelength | 1310 Band | nm | 1260 | 1360 | 1260 | 1360 |
1490 Band | nm | 1480 | 1500 | 1480 | 1500 | |
1550 Band | nm | 1550 | 1560 | 1550 | 1560 | |
Insertion Loss | 1→2 | dB | 0.4 | 0.4 | ||
1→3 | dB | 0.6 | 0.6 | |||
Isolation | 1→2 | dB | 15 | 15 | ||
1→3 | dB | 25 | 25 | |||
PDL | dB | 0.1 | 0.1 | |||
Return Loss | dB | 45 | 45 | |||
Directivity | dB | 50 | 50 | |||
Operating.Temperature | ℃ | -40 | 85 | -40 | 85 | |
Storage Temperature | ℃ | -40 | 85 | -40 | 85 | |
Size | mm | ￠5.5*34; 5.5*38 | ||||
Maximum Power Handling | mw | 300 | ||||
TFWDM | Operating Wavelength | Fiber Type | Connector Type | |
G type B type | 534-1550pass/1310&1490 reflect 345-1310&1490pass/1550 reflect | 1-250um 2-900um | 0=None | |
Specifications may change without notice
Ordering Information
Single Mode WDM
