Model No: FC Adaptor
FC SX big d-type bare fiber optic adaptor

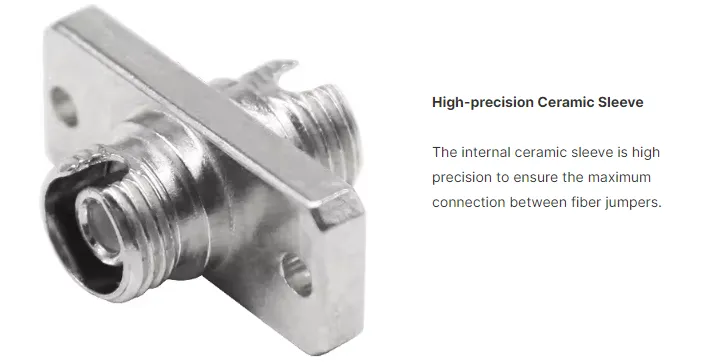

FC Fiber Adapter: Its external form is a metal sleeve with a fastening method of screw buckle. The FC type connector uses a ceramic pin for docking. This type of connector has a simple structure, convenient operation and easy production, but the fiber end face is sensitive to dust and is prone to Fresnel reflection, making it difficult to improve the return loss performance. Later, improvements were made to this type of connector, using pins with a spherical surface on the docking end (PC), while the external structure remained unchanged, greatly improving insertion loss and return loss performance.
Quantity :
0.00
Subscribe to our Newsletter
fc adapter Adapter/FC Adapter
Fiber fiber fc adapter are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection.

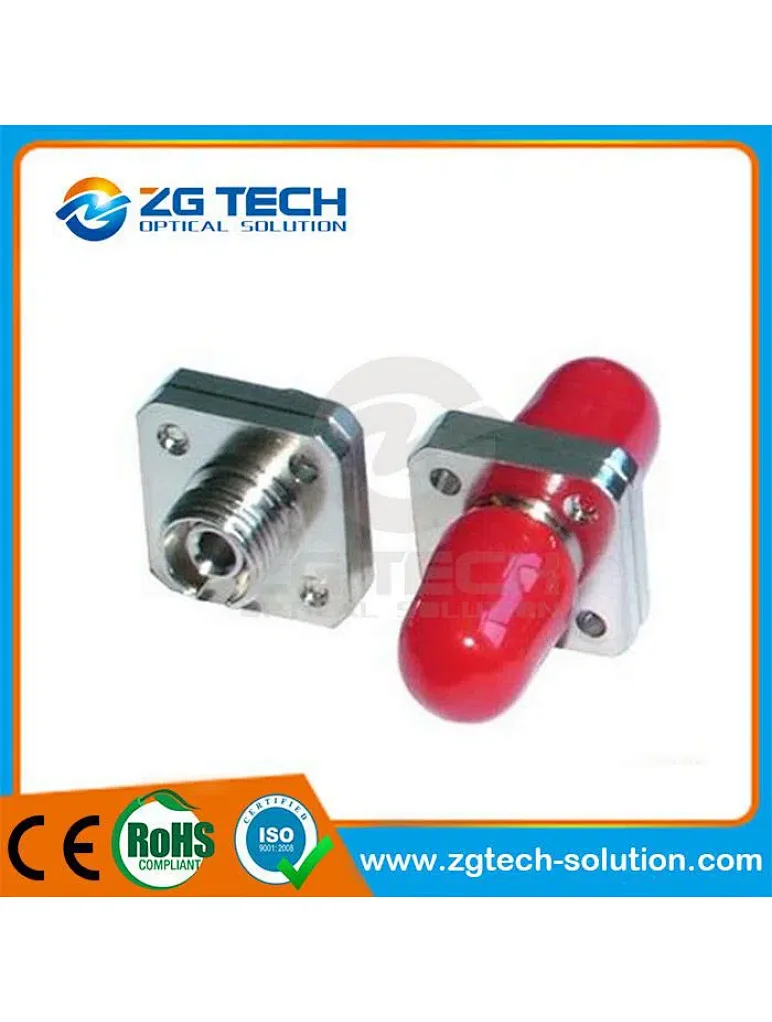

There are three kinds of FC fiber optic adapters, square type, single D type and double D type. All fc adapter are with metal housing, single-mode FC fiber optic adapters are with zirconia sleeves, multi-mode fc adapters are with bronze sleeves..
fc adapter Features:
Discordia, ANSI,TIA/EIA,NTT and JIS compliance
High precision alignment
Low insertion loss
High return loss
Good repeatability
Good changeability
Good temperature stabilization
fc adapter Material:
Sleeve material: Zirconia
Housing Material: High Quality Plastic
fc adapter Application:
CATV System
Telecommunications
Optical Networks
Testing / Measurement Instruments
Fiber to the Home
fc adapter Parameter:
Description | SC Fiber Optic Adapter | |||||
Item NO. | Test Item | Unit | Standard & Requirement | |||
SM | MM | |||||
PC | UPC | APC | PC | |||
1 | Insertion Loss(Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 |
2 | Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
3 | Exchangeability | dB | ≤0.2 | |||
4 | Repeatability | dB | ≤0.2 | |||
5 | Durability | Time | ＞1000 | |||
6 | Operating Temperature | ℃ | ﹣40～﹢75 | |||
7 | Storage Temperature | ℃ | ﹣45～﹢85 | |||
