Optical Fiber Coupler Adapter
Optical Fiber Coupler Adapter are used in fiber optic connection, the typical use is to provide a cable to cable fiber connection.

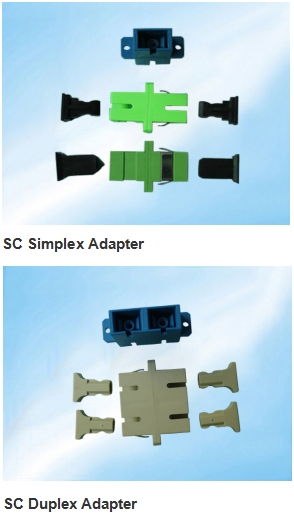

All SC fiber optic adapters are flange type, single mode adapters are with zirconia sleeve while multimode Optical Fiber Coupler Adapter are with bronze sleeve. Optical Fiber Coupler Adapteroptic adapters are available with both simplex adapters and duplex adapters.
Optical Fiber Coupler Adapter
Features:
Discordia, ANSI,TIA/EIA,NTT and JIS compliance
High precision alignment
Low insertion loss
High return loss
Good repeatability
Good changeability
Good temperature stabilization
Optical Fiber Coupler Adapter
Material:
Sleeve material: Zirconia
Housing Material: High Quality Plastic
Optical Fiber Coupler Adapter
Application:
CATV System
Telecommunications
Optical Networks
Testing / Measurement Instruments
Fiber to the Home
Optical Fiber Coupler Adapter
Parameter:
Description | Optical Fiber Coupler Adapter | |||||
Item NO. |
Test Item |
Unit | Standard & Requirement | |||
SM | MM | |||||
PC | UPC | APC | PC | |||
1 | Insertion Loss(Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 |
2 | Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 |
3 | Exchangeability | dB | ≤0.2 | |||
4 | Repeatability | dB | ≤0.2 | |||
5 | Durability | Time | ＞1000 | |||
6 | Operating Temperature | ℃ | ﹣40～﹢75 | |||
7 | Storage Temperature | ℃ | ﹣45～﹢85 | |||
Optical Fiber Coupler Adapter
Optical Fiber Coupler Adapter
SC Adapter
Optical Fiber Coupler Adapter
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We can ship by DHL, UPS, FedEx or TNT and cargo agent. It usually takes 3-5 days to arrive. Sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
