Model No: GBIC CWDM Optic Transceiver Module

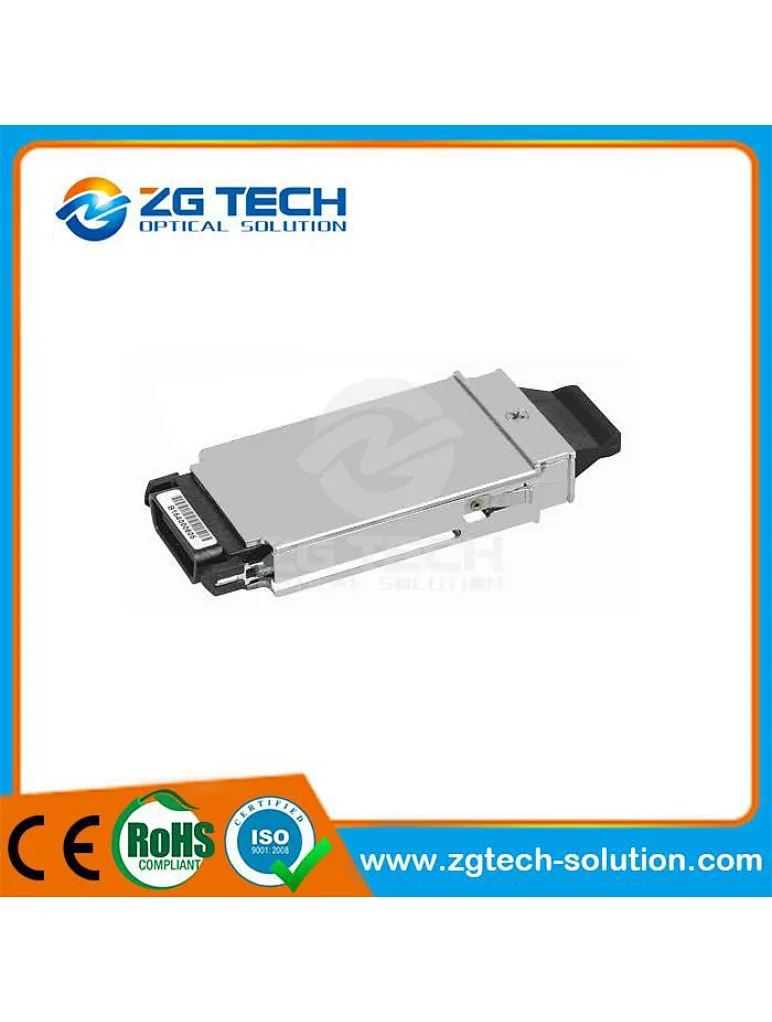

GBIC CWDM Optic Transceiver Module
The GBIC CWDM Optic Transceiver Module supports multi-channel single-fiber transmission, allowing multiple signals to be transmitted simultaneously, reducing the number and cost of optical fibers. The module enables long-distance transmission and can be used with different types of optical fiber connections.
Quantity :
0.00
Subscribe to our Newsletter
GBIC CWDM Optic Transceiver Module
The GBIC CWDM Optic Transceiver Module supports multi-channel single-fiber transmission, allowing multiple signals to be transmitted simultaneously, reducing the number and cost of optical fibers. The module enables long-distance transmission and can be used with different types of optical fiber connections.
Product Introduction
Features
●Up to 1.25Gbps/2.5Gbps bi-directional data links
●Transmission up to 40KM/80KM
●Uncooled DFB Laser Transmitter
●18 channels can be selected from 1270nm to 1610nm in wavelength
●Extended Operating Temperature Range(0℃～70℃)
●Extended Power supply +3.3/5.0V compatible
●Hot Pluggable
●Duplex SC optical interface
●Metal enclosure, Low EMI
●Class 1 Laser Product Compliant with the Requirement of IEC 60825-1 and IEC 60825-2
●Compliant with Gigabit Interface Converter(GBIC) Revision5.5
●Compliant with Proposed Specifications for IEEE 802.3z Gigabit Ethernet
●Compliant with ANSI Specifications for fiber channel
●Compliant with ITU-T G.695
Applications
●Gigabit Ethernet
●Metro Access Rings and Point to Point networking for Gigabit Ethernet and Fiber channel
●Coarse WDM application
Product Paramenters
Product Number | Data Rate | Wavelength (nm) | Transmission Distance | Connector | Laser (Tx) | Detector (RX) | Datasheet Download |
FPCGXX1GS-40 | 1.25G | 1270-1610 | 40KM | SC | DFB | PIN | Datasheet |
FPCGXX1GS-80 | 1.25G | 1270-1610 | 80KM | SC | DFB | PIN | Datasheet |
FPCGXX2GS-40 | 2.5G | 1270-1610 | 40KM | SC | DFB | PIN | Datasheet |
