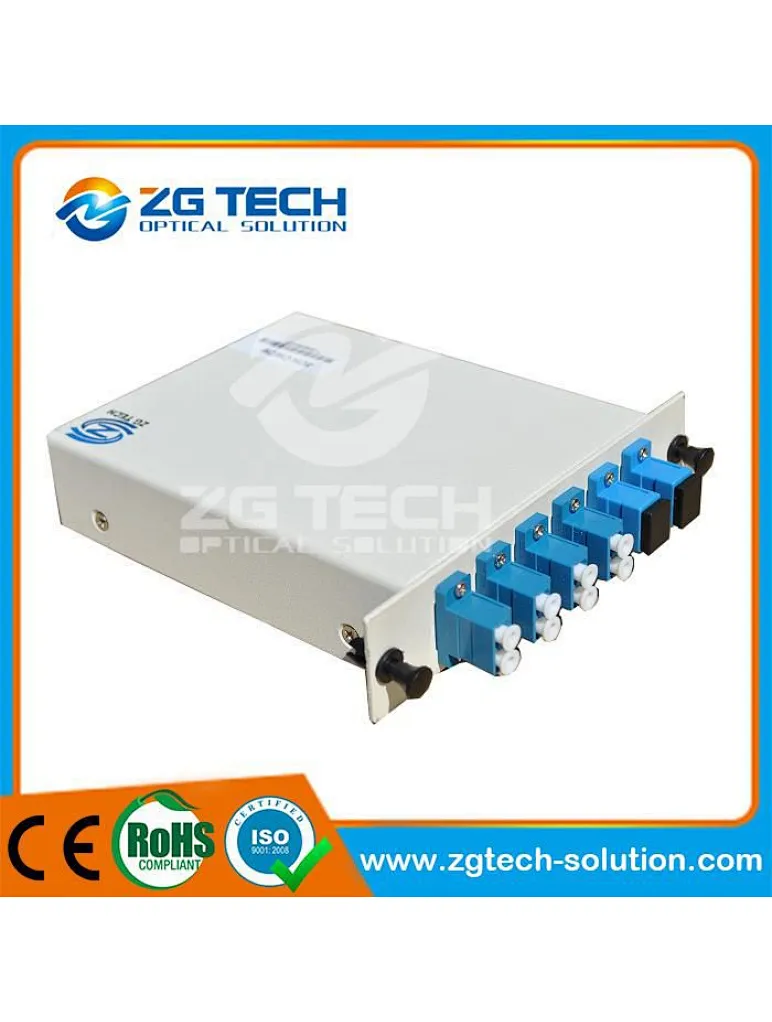

LGX Module 2x8 PLC Splitter

LGX Module 2x8 PLC Splitter
LGX Module 2x8 PLC Splitter
LGX Module 2x8 PLC Splitter
1
As one of the leading lgx module 2x8 plc splitter manufacturers and suppliers in China, and equipped with a productive factory, ZG Technology (Shenzhen) Limited can offer you customized and low price lgx module 2x8 plc splitter made in China. Welcome to visit our website.
Quantity

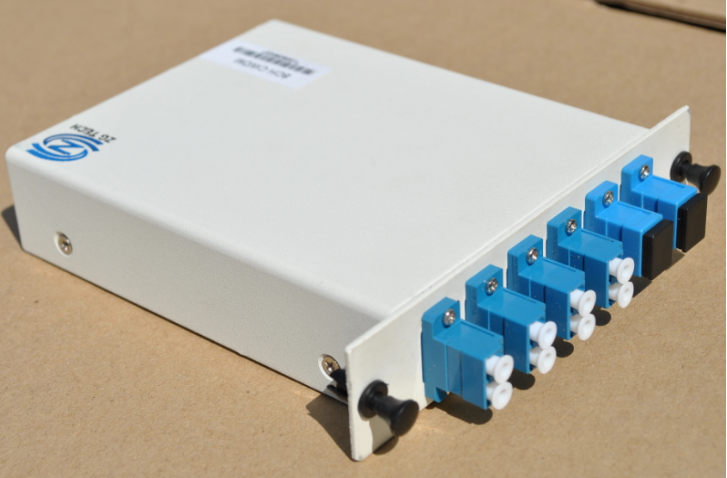

LGX Module 2x8  PLC Splitter

Features

Applications

Low insertion loss and high uniform
Low polarization loss
High reliability

FTTX application
CATV network
Passive Optical Network(PON)

LGX Module 2x8 PLC Splitter

Performance Specifications:
LGX Module 2x8 PLC Splitter

Type

2x8

Operating Wavelength(nm)

1260~1650

Insertion loss (dB)

Typical

10.8

Maximum

11

Uniformity (dB)

Maximum

1.3

Polarization Dependent Loss (dB)

Maximum

0.3

Return loss (dB)

Minimum

≥50

Directivity (dB)

Minimum

≥55

Operating temperature (℃)

-20 to75

Storage temperature (℃)

-40 to 85

Optical fiber type

SMF-28 Or the customer require

Optical fiber length (m)

1.0 or customize

Remarks:
LGX Module 2x8 PLC Splitter
1.All measurements at room temperature.
2.Specification exclude connector loss.
3.The Insertion Loss, if with connector, PC/UPC will be 0.2dB higher; APC connector will be 0.3dB higher.
4.Return Loss, if with connector APC>60dB,UPC>55dB.

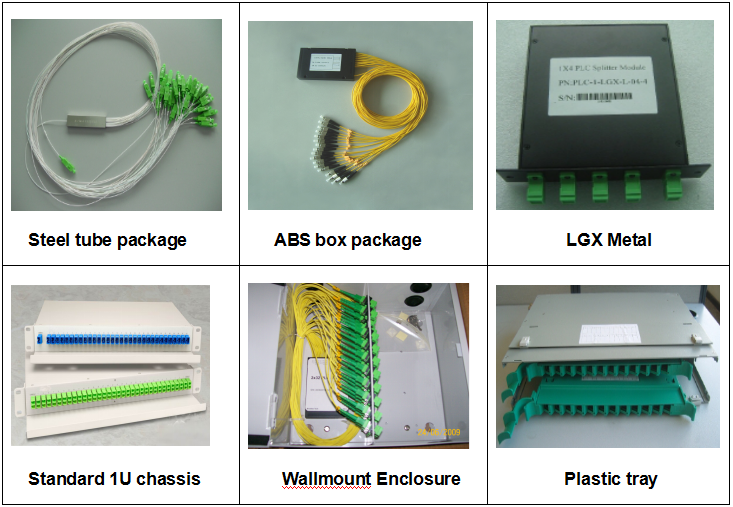

Available Package Dimension:
LGX Module 2x8 PLC Splitter

​​​​​​​LGX Module 2x8 PLC Splitter
