Model No: 1x8 SC / PC

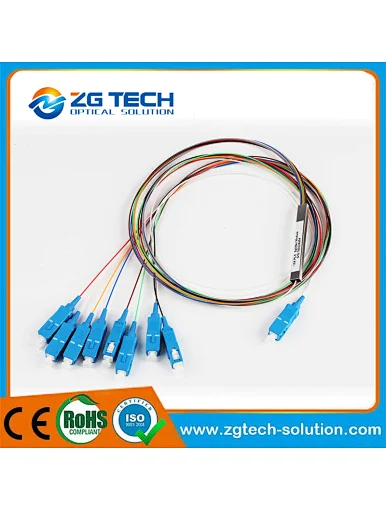

1X8 PLC Splitter, SC/PC 0.9mm Mini Blockless Fiber Splitter

Our PLC Splitter Provides a Low Cost Power Distribution Solution with Small Form Factor and High Reliability, wide operating wavelength range and good channel-to channel uniformity.
Brand Name: ZG
Place of Origin: Guangdong, China
Product name: Fiber Optic PLC Splitter

Quantity :

0.00

Buy Now

add to cart

Contact Now

All Products

Subscribe to our Newsletter

Message Content

Country

Phone

Company Name

Name

Description:

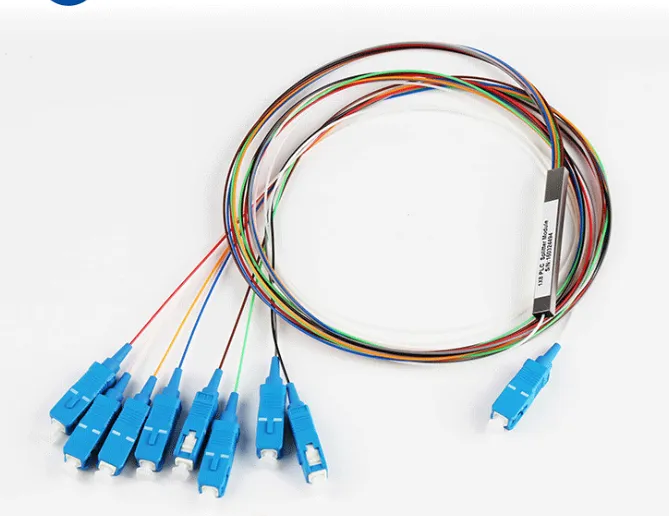

PLC Splitter 1x8 SC/PC, Mini Blockless Type, Singlemode, SC/UPC

PLC Splitter 1x8 SC/PC also referred to as optical splitter, or PLC Splitter, is an even split ratio from one input fiber to multiple output fibers. It is characterized as uniform broadband power splitters featuring exceptional uniformity of insertion loss throughout all channels resulting in fact in practical wavelength independency over all transmission range from 1260 to 1650 nm. Optical splitter has played an important role in passive optical networks (like EPON, GPON, BPON, FTTX, FTTH, etc.) by allowing a single PON interface to be shared among many subscribers.

1x8 mini Blockless PLC Splitter PLC Splitter PLC Splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets.

Our PLC Splitter provides highly stable splitting performance superbly across temperature and wavelength in low insertion loss, low input polarization sensitivity, excellent uniformity, and low return loss. Different splitting ratio is available, 1X2, 1X4, 2X4, 1X8, 2X8, 1X16, 2X16, 1X32, 2X32 and 1x64.PLC Splitter PLC Splitter

PLC Splitter Product Details：

Package Style	Mini Blockless Module	Configuration Type	1x8
Fiber Grade	G.652D/ other	Fiber Mode	Singlemode
Connector Type	SC/UPC	Split Ratio	50/50
Input/Output Fiber Diameter	0.9mm	Input/Output Fiber Length	1.5m/ other
Insertion Loss	≤10.7dB	Return Loss	≥55dB
Loss Uniformity	≤1.0dB	Directivity	≥55dB
Polarization Dependent Loss	≤0.3dB	Temperature Dependent Loss	≤0.5dB
Wavelength Dependent Loss	≤0.5dB	Operating Bandwidth	1260~1650nm
Operating	-40 to 85°C	Storage Temperature	-40 to 85°C

Fiber PLC Splitter product advantages introduction：
.The PLC Splitter can distribute the optical fiber signal to all ports evenly.
.Easy installation and convenient operation.
.Split Input Signal Evenly into 8 Output Ports
.≤10.7dB Low Insertion Loss and ≤0.3dB Low Polarization Dependent Loss
.Fully Passive Optical Branching Device
.Applicable to racks, wall mounted box, optical fiber distribution box, etc
.1260~1650nm Broad Operating Wavelengths
.High quality imported chips with low polarization dependent loss can meet different wavelength requirements.
.The loss is insensitive to wavelength and can meet the transmission needs of different wavelengths.

PLC Splitter Features:
Low Insertion loss & PDL
Good channel-to-channel uniformity
Compact Design
Wide Operating Temperature
Wide Operating Wavelength:1260~1650nm
High Reliability and Stability
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209

PLC Splitter Applications:
FTTx (FTTB, FTTH, FTTC)
Passive Optical Networks (PON, GEPON)
Local Area Networks (LAN)
CATV Systems
Test Equipments
Telecommunication Networks

PLC Splitter Ordering Information:
.Opelink provides a whole series of 1xN and 2xN Fiber splitters that are tailored for specific applications:
.1x2, 1x4, 1x8, 1x16,1x32, 1x64, 2x2, 2x4, 2x8, 2x16, 2x32,2x64 Versions of splitters are available.
.SC/UPC, FC/UPC, LC/UPC, ST/UPC, SC/APC, FC/APC, LC/APC connectors or no connectors can be select as you like
.0.9, 2.0, 3.0mm for input & output fiber type.
.The length of pigtail can be also customized; usually we will provide you 1.5m, welcome to contact us for more details.

Structure	Package Type	Pigtail In	Pigtail Out	Connector	Fiber Core	Pigtail Length	Package
1002=1X2 1004=1X4 1032=1X32 1064=1x64 2002=2X2 2004=2X4 2008=2X8 2032=2X32 2064=2X64 xxxx=other	M= Miniature Package B= Box package R= Rack Mount P= Blade Package	B=250um bare fiber L=900um loose tube 2=2.0mm 3=3.0mm A=Adaptor XX= other	B=250um bare fiber L=900um loose tube 2=2.0mm 3=3.0mm A=Adaptor XX= other	SU=SC/UPC SA=SC/APC FU=FC/UPC FA=FC/APC ST=ST/UPC LA=LC/APC LU=LC/UPC 00=NONE XX=other	S1=G652D S2= G657A1 M5=50/125 M6=62.5/125 M3=OM3 M4=OM4 XX=other	0.5M=0.5M 10M=10M XXX=other	S1,S2...S12 01,02,03,04 U,G,X

PLC Splitter Package Size:

Plastic Box package/mm	Miniature Package/mm	Blade Package/mm	Rack Mount/mm
01=100X80X9 02=120X80X18 03=140X114X18 04=90x20x9.5 XX= other	S1=40X4X4 S2=45X4X4 S3=45X4.5X4 S4=50x7x4 S5=60X7X4 S6=60X12X4 S7=65X7X4 S8=80X12X4 S9=80X20X6 S10=90x20x6 S11=100x40x6 S12=55x7x4	21=130X100X25 24=130X100X206 22=130X100X50 25=130X100X284 23=130X100X102 26=130X100X76 XX= other	XU=19” Rack Mount (X=1,2,3,4,) 31=R Type Mount Box 32=Wall-Mount Type 33=ODF Type XX= other

1X8 PLC Splitter, SC/PC 0.9mm Mini Blockless Fiber Splitter

Description:

PLC Splitter Product Details：

Package Style

Mini Blockless Module

Configuration Type

1x8

Fiber Grade

G.652D/ other

Fiber Mode

Singlemode

Connector Type

SC/UPC

Split Ratio

50/50

Input/Output Fiber Diameter

0.9mm

Input/Output Fiber Length

1.5m/ other

Insertion Loss

≤10.7dB

Return Loss

≥55dB

Loss Uniformity

≤1.0dB

Directivity

≥55dB

Polarization Dependent Loss

≤0.3dB

Temperature Dependent Loss

≤0.5dB

Wavelength Dependent Loss

≤0.5dB

Operating Bandwidth

1260~1650nm

Operating

-40 to 85°C

Storage Temperature

-40 to 85°C

Structure

PackageType

Pigtail In

Pigtail Out

Connector

Fiber Core

Pigtail Length

Package

1002=1X2 1004=1X4 1032=1X321064=1x642002=2X2 2004=2X42008=2X8 2032=2X322064=2X64xxxx=other

M= Miniature PackageB= Box packageR= Rack MountP= Blade Package

B=250um bare fiberL=900um loose tube2=2.0mm3=3.0mmA=AdaptorXX= other

B=250um bare fiberL=900um loose tube2=2.0mm3=3.0mmA=AdaptorXX= other

SU=SC/UPC SA=SC/APCFU=FC/UPC FA=FC/APCST=ST/UPC LA=LC/APCLU=LC/UPC 00=NONEXX=other

S1=G652DS2= G657A1M5=50/125M6=62.5/125M3=OM3M4=OM4XX=other

0.5M=0.5M10M=10MXXX=other

S1,S2...S1201,02,03,04U,G,X

PLC Splitter Package Size:

Plastic Box package/mm

Miniature Package/mm

Blade Package/mm

Rack Mount/mm

01=100X80X9 02=120X80X1803=140X114X18 04=90x20x9.5XX= other

S1=40X4X4S2=45X4X4S3=45X4.5X4S4=50x7x4S5=60X7X4S6=60X12X4S7=65X7X4S8=80X12X4S9=80X20X6S10=90x20x6S11=100x40x6S12=55x7x4

21=130X100X25 24=130X100X20622=130X100X50 25=130X100X28423=130X100X102 26=130X100X76XX= other

XU=19” Rack Mount (X=1,2,3,4,)31=R Type Mount Box32=Wall-Mount Type33=ODF TypeXX= other
