Blockless 1x16 PLC Splitter
Products Overview:
Blockless 1x16 PLC Splitter

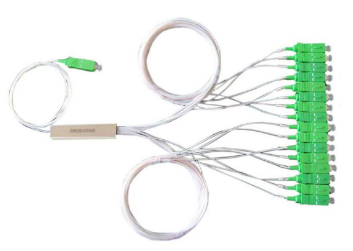

ZG Tech's Blockless 1x16 PLC Splitter, is a kind of planar waveguide integrated optical device, Blockless 1x16 PLC Splitter can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used 1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical optical distributor (POS) use.
Features | Applications |
Low insertion loss and high uniform | FTTX application |
Performance Specifications:
Blockless 1x16 PLC Splitter
Type | 1x16 | |
Operating Wavelength(nm) | 1260~1650 | |
Insertion loss (dB) | Typical | 13.6 |
Maximum | 13.8 | |
Uniformity (dB) | Maximum | 1.0 |
Polarization Dependent Loss (dB) | Maximum | 0.2 |
Return loss (dB) | Minimum | ≥50 |
Directivity (dB) | Minimum | ≥55 |
Operating temperature (℃) | -20 to75 | |
Storage temperature (℃) | -40 to 85 | |
Optical fiber type | SMF-28 Or the customer require | |
Optical fiber length (m) | 1.0 or customize | |
Remarks:
Blockless 1x16 PLC Splitter
1.All measurements at room temperature.
2.Specification exclude connector loss.
3.The Insertion Loss, if with connector, PC/UPC will be 0.2dB higher; APC connector will be 0.3dB higher.
4.Return Loss, if with connector APC>60dB,UPC>55dB.

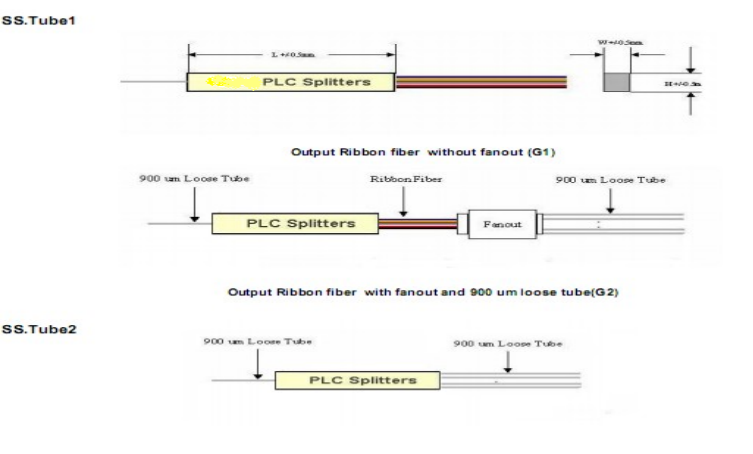

Stainless Steel Tube Package Drawing:
Blockless 1x16 PLC Splitter
Stainless Steel Tube Package Dimensions:
Blockless 1x16 PLC Splitter
PLC Type | 1x16 |
SS tube1 (mm) | 4x4x40/ 4x7x50 |
SS tube2 (mm) | 4x12x60 |
Ordering Information:
Blockless 1x16 PLC Splitter
ZP | Channel | Package Type | Fiber Type | Connector Type In | Connector Type Out | Fiber |
Z=ZG TECH P= | 0102=1x16 | D=bare fiber device(S.S tube 1) F=FanOut type M=Mini Module(S.S Tube 2) | 0=250um bare fiber 1=900um loose tube | 0=no connector | 0=no connector | 10=1meter 15=1.5 Meter 20=2.0 Meter 30=3.0 Meter |
Packing Detail:
Blockless 1x16 PLC Splitter

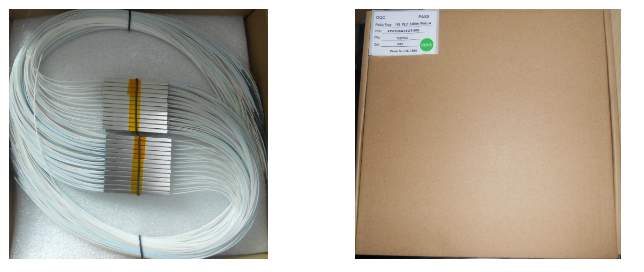

Method 1:50pcs was fasten on the pearl cotton (size : 0.5X25X25CM), and two pieces pearl cotton will be packed into a small paper box (size:27x25x6.5CM), total 150pcs/per box. This method suitable for the PLC splitter without connector. Then they will be packed into a master carton. It's can save the packing volume and shipping cost. As following pictures:

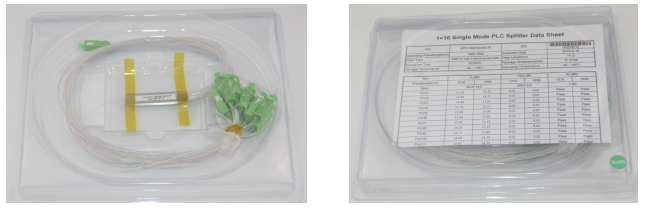

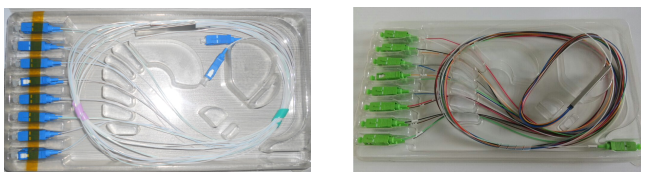

Method 2: Packed into small blister box (size: 171.5x132.5x21mm), 2pcs/box, then they will be packed into a master carton. It suitable for the PLC splitter with connectors. As following pictures:

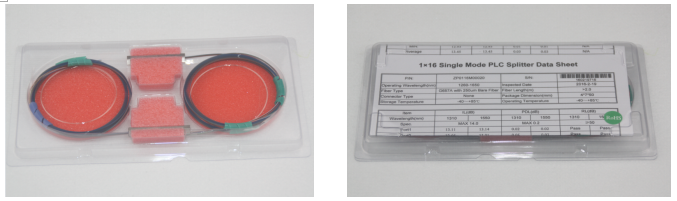

Method 3: packing into small blister box (size: 240x126x12mm), 1 or 2pcs/box, then they will be packed into a master carton. It suitable for the PLC splitter without connector or ribbon fiber/bare fiber splitter. As following pictures:
