Model No: 8+1 Channel Demux Compact CWDM

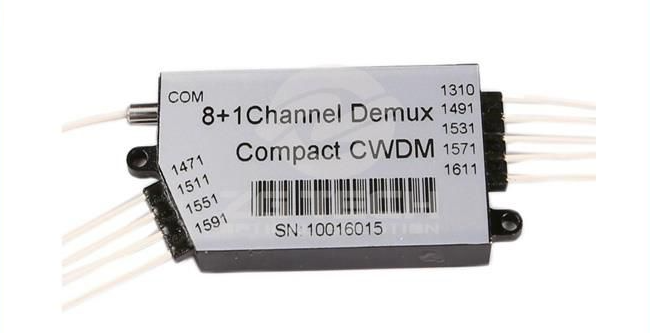

8+1 Channel Demux Compact CWDM MUX DEMUX CCWDM
ZG TECH offers a full line fo 8+1Channel Compact CWDM MUX DEMUX DEMUX Modules based on optical bench platform(that consists of multiple filter collimator and substrate,wedges) to greatly reduce manufacturing cost and improve optical performance. And the operating wavelength is from 1270nm(1271nm) to 1610nm(1611nm). CCWDM, 8x1Channel Compact CWDM MUX DEMUX...
Quantity :
US $80.00
Subscribe to our Newsletter
ZG TECH offers a full line fo 8x1Channel Compact CWDM MUX DEMUX DEMUX Modules based on optical bench platform(that consists of multiple filter collimator and substrate,wedges) to greatly reduce manufacturing cost and improve optical performance. And the operating wavelength is from 1270nm(1271nm) to 1610nm(1611nm). CCWDM, 8x1Channel Compact CWDM MUX DEMUX...
8+1 Channel Demux Compact CWDM MUX DEMUX CCWDM
8+1 channel demultiplexers are typically based on wavelength selection techniques, such as Arrayed Waveguide Grating (AWG) or filter chains. The input signal contains multiple wavelengths, and the demultiplexer separates them based on the different characteristics of each wavelength (such as wavelength or frequency) and guides each wavelength to the corresponding output port.
Features
1. Epoxy Free in Optical Path
2. High Isolation
3. Low Optic Loss and Polarization Sensitivity
4. Compact Mini Size
5.Telcordia GR-1221 Qualified
Application
1. CCWDM network in PON
2. CCWDM Upgrade in Metro Network
3. CATV
4. FTTH/FTTP
Performance Parameters
Type | 8 Channel Mux/Demux | 8 Channel+1 Mux/Demux | |
Operating Wavelength range(nm) | 1270~1610 or 1271~1611 | ||
Center Wavelength Accuracy(nm) | ±0.5 | ||
Channel Spacing(nm) | 20 | ||
Channel Pass band (nm) | Channels | ±7.5/±6.5 | |
Express Port | N/A | 1310±50,or others specified | |
Insertion Loss (Max.dB) | 1.8 | ||
Channel Ripper( Max.dB) | 0.3 | ||
Fiber Type | Corning SMF-28e | ||
Isolation (Min.dB) | Adjacent | 30 | |
Non-adjacent | 40 | ||
Express Port | 15 | ||
Insertion Loss Temperature Sensitivity ( Max. dB/℃) | 0.005 | ||
PDL(Max.dB) | 0.15 | ||
Polarization Mode Dispersion( Max.dB) | 0.1 | ||
Directivity (Max.dB) | 50 | ||
Return Loss(Min.dB) | 45 | ||
Maximum Power Handing(mW) | 500 | ||
Operating Temperature(℃) | -5~+70 | ||
Storage Tmepreature(℃) | -40~+85 | ||
Package | 44(L)X28(W)X6(H), 44(L)X28(W)X7(H) or 53.8(L)X28(W)X8(H) | ||
