What is fiber optic pigtail?

Fiber Optic Pigtail is a key component used in fiber optic communication systems to connect optical equipment and transmission lines. Its core function is to achieve precise transmission and efficient coupling of optical signals. The following provides a detailed analysis from four dimensions: structure, classification, application scenarios, and advantages:

Structural composition

Fiber  consists of two parts: fiber core wire and connector:

1. Fiber core wire: usually single-mode or multi-mode fiber, with a short length (usually 0.5-3 meters), one end is bare fiber (without connector installed), and the other end is pre installed with connector.

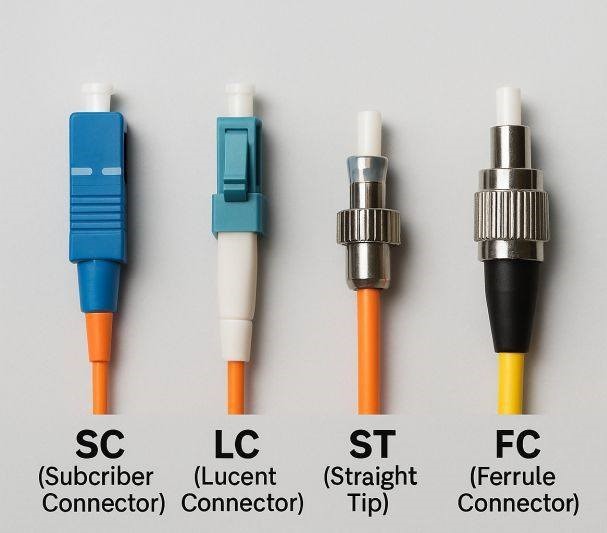

2. Connectors: Common types include SC, FC, LC, ST, etc., which are used to quickly plug and unplug interfaces with optical modules, switches, routers, and other devices to ensure low loss and high stability optical signal transmission.

Core classification

According to the type and application scenario of optical fibers, fiber s can be divided into the following two categories:

1. Classified by fiber optic mode:

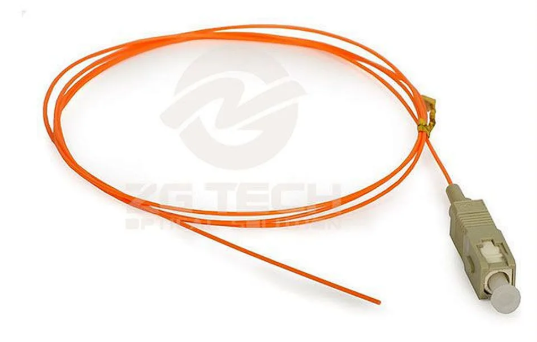

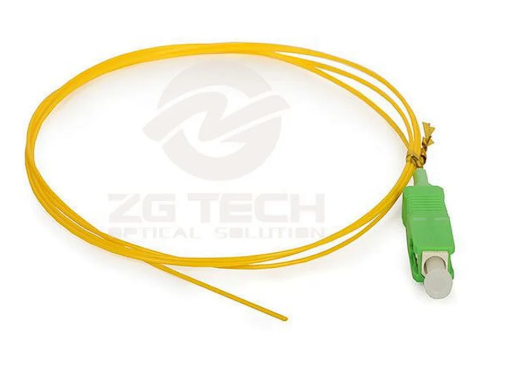

Single mode : core diameter of 9 μ m, wavelength of 1310nm/1550nm, suitable for long-distance transmission (such as tens of kilometers), with low loss (below 0.2dB/km).

Multi mode : core diameter of 50 μ m or 62.5 μ m, wavelength of 850nm/1300nm, suitable for short distance (such as hundreds of meters) transmission, with low cost.

2. Classified by connector type:

SC : square interface, easy to plug and unplug, commonly used in data centers.

LC : miniaturized interface, high density, suitable for high-density cabling scenarios.

FC : metal threaded interface, strong stability, mostly used for communication base stations.

ST : snap on interface, commonly used in the early days, gradually replaced by SC/LC.

3. According to the number of optical fibers

Fiber s are available in 1, 2, 4, 6, 8, 12, 24, 48, and 72 cores. This type of  integrates multiple independent optical fibers within a sheath, which can simultaneously connect multiple devices or transmit multiple signals, greatly improving port density and wiring efficiency. It is commonly used in high-density distribution frames and equipment cabinets. According to the TIA-EIA-598-A standard, different colors are used for encoding on optical fibers. Usually, single core optical fiber is the most common  in daily life.

4. By application environment

According to the application environment, some fiber s are designed for daily use, while others have the function of withstanding harsh environments such as humidity, high temperature, and heavy rain, such as armored fiber s and waterproof fibers.

Indoor fiber optic : As the name suggests, indoor fiber optic  is only suitable for indoor wiring. It has no additional protection, but is sufficient for indoor use. Low cost and good flexibility make it the most commonly used type.

Armored fiber tail: Armored fiber tail has an additional metal protective layer, which provides higher durability and can effectively shield common external damage. It is suitable for harsh environments and provides additional protection.

Waterproof Fiber Optic : The waterproof fiber optic  adopts a stainless steel waterproof armor PE sheath, with low loss and high return loss, which can effectively resist extreme environments. Waterproof fiber optic tails are typically equipped with waterproof connectors to achieve optimal performance. Its excellent extreme environmental tolerance makes it the preferred choice for connecting backbone optical cables and optical receivers. The waterproof and anti-corrosion properties also make it commonly used in outdoor fiber optic network construction, such as cable TV installation and military applications.

summary

Fiber optic  is the fundamental connecting component of modern optical networks. One end is pre installed with precision connectors (such as LC/SC), while the other end retains bare optical fibers for fusion splicing. This design ensures connection quality through factory pre installation, significantly reducing on-site installation difficulty, while providing single-mode (long-distance) and multi-mode (short distance) types to meet different scene requirements. The core value of  lies in achieving standardized splicing of fiber optic networks. With its high reliability and low loss characteristics, it is widely used in data centers, 5G base stations, FTTH and other scenarios, and is an indispensable key component for building efficient optical communication networks.
